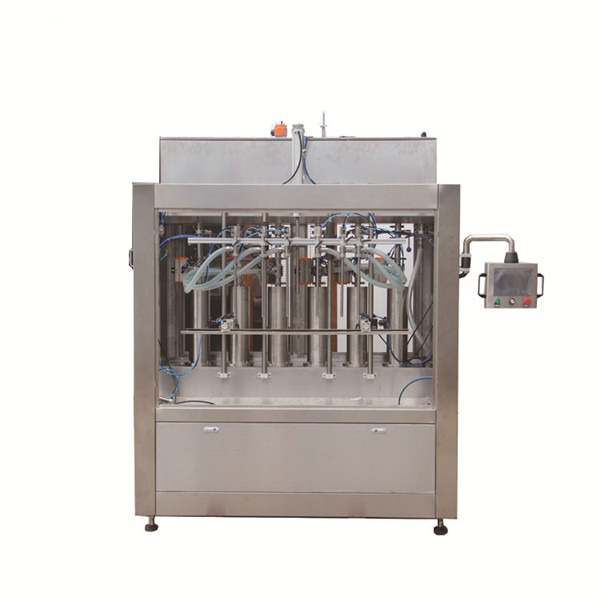

دستگاه پر کردن ماشین ظرفشویی

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.

مشخصات فنی

---

دستگاه پر کردن مایع ظرفشویی
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C

شرح

---

CE اتحادیه اروپا
ISO9001
شرایط GMP را ملاقات کنید
longlife of service, low mainteinance rate

عملکرد اصلی

---

دستگاه پیشرفته دستگاه پرشدن با دقت بالا است که می تواند بطور خودکار شمارش ، پر کردن و بسته شدن بطری ها را انجام دهد.

امکانات

1. ساختار جمع و جور ، خوش ظاهر ، آسان برای کار و بسیار خودکار.

2. تماس با اجزای سازنده مواد از فولاد ضدزنگ ساخته شده و تمیز کردن آن آسان است.

3. برای اطمینان از صحت ، پر کردن صدا با دریچه های فیلم کنترل می شود.

4- دریچه های پر سرعت و پرقدرت بسیار پر اطمینان از نشتی جلوگیری می کند.

5- مجهز به سیستم تغذیه ای کلاه بسیار مؤثر است.

گزینه زبان

Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.

مشخصات عمده:

---

1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.

2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.

3. می توانید بسیاری از پارامترهای به یاد ماندنی ، مفید برای مشخصات مختلف تغییر ، تمام دوز پر کردن را می توان با صفحه لمسی تنظیم شده است.

4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.

5.  Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.

6.  With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.

پارامتر اصلی فنی

---

مورد	نام	پارامتر فنی
01	ابعاد دستگاه (L * W * H)	2200mm * 1400mm * 2800mm
02	وزن دستگاه	حدود 1400 کیلوگرم
03	قطر داخلی باز شده کانتینر	35ف35 میلی متر
04	ظرف مناسب	1 لیتر .2 لیتر
05	ارتفاع ظرف	80-350 میلی متر
06	منبع تغذیه	AC 380V ؛ 50HZ
07	قدرت	5Kw
08	صحت پر کردن	± 1٪
09	منبع هوا	هوای فشرده پایدار و تمیز 0.6Mpa
11	تعداد نازل های پر کننده	13
12	ارتفاع نوار نقاله	900 میلی متر ± 50 میلی متر
13	ظرفیت	3200 بطری در ساعت (آب را به عنوان آزمایش مصرف کنید)
14	بطری در جهت خوراک	از چپ به راست

جزئیات سریع

---

نوع: دستگاه پرکن
شرط: جدید
کاربرد: شیمیایی
نوع بسته بندی: بطری
مواد بسته بندی: چوب
درجه اتوماتیک: خودکار
نوع رانده شده: پنوماتیک
ولتاژ: 220v
قدرت: 3KW
محل مبدا: شانگهای. چین (سرزمین اصلی)
نام تجاری: NPACK
ابعاد (L * W * H): 2200mm * 1400mm * 2800mm
وزن: 1400
گواهینامه: CE
خدمات پس از فروش ارائه شده: مهندسین موجود در ماشین آلات خدمات در خارج از کشور
مواد: SS304
PLC: پاناسونیک
صفحه لمسی: پاناسونیک

Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.

One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.

Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.

The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.

When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.

In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
